Lift Check Valve | BRONZE VALVE
Product Overview

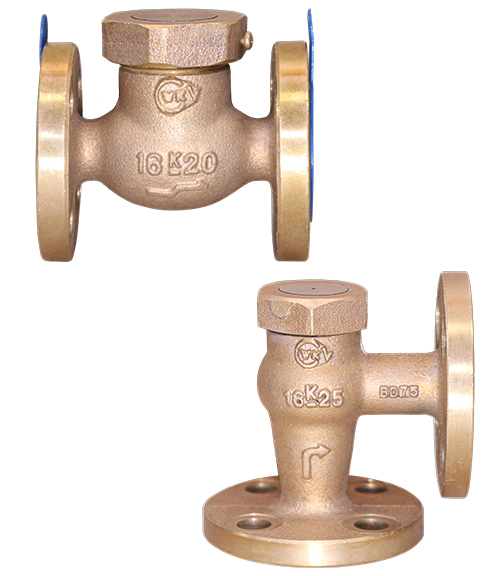

LIFT CHECK GLOBE VALVE (UNION BONNET TYPE)
| STANDARD | PRESSURE | SIZE |
|---|---|---|
| JIS F7415 | 5K | 15A~40A |
| JIS F7417 | 16K | 15A~40A |
LIFT CHECK ANGLE VALVE (UNION BONNET TYPE)
| STANDARD | PRESSURE | SIZE |
|---|---|---|
| JIS F7416 | 5K | 15A~40A |
| JIS F7418 | 16K | 15A~40A |
Hydro. Test pressure [ unit : kgf/cm² ]
| RATING | 5 | 16 |
|---|---|---|
| SHEEL | 10.5 | 33 |
| SEAT | 7.7 → 4 | 24.2 → 4 |
Max. working pressure [ unit : kgf/cm² ]
| Rating | ||
|---|---|---|
| Fluid condition | 5 | 16 |
| Air, pulsation water | 5 | 16 |
| Non shock water | 7 | 22 |
