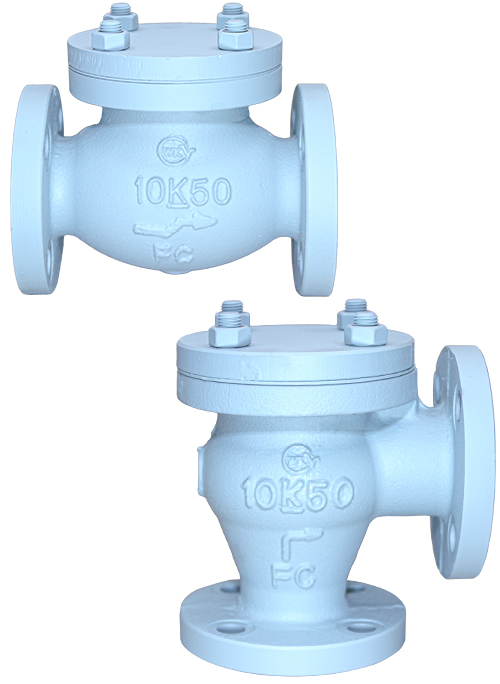

Lift Check Valve | CAST IRON VALVE
Product Overview
LIFT CHECK GLOBE VALVE
| STANDARD | PRESSURE | SIZE |
|---|---|---|
| JIS F7358 | 5K | 50A~150A |
LIFT CHECK ANGLE VALVE
| STANDARD | PRESSURE | SIZE |
|---|---|---|
| JIS F7359 | 5K | 50A~200A |
Hydro. Test pressure [ unit : kgf/cm² ]
| RATING | 5 |
|---|---|
| Hydraulic inspection for body |
10.5 |
| Watertight inspection for valve seat |
7.7 to 4 |
Max. working pressure [ unit : kgf/cm² ]
| Rating | |
|---|---|
| Fluid condition | 5 |
| Oil and pulsation water | 5 |
| Non shock water of 120℃ or less |
7 |
